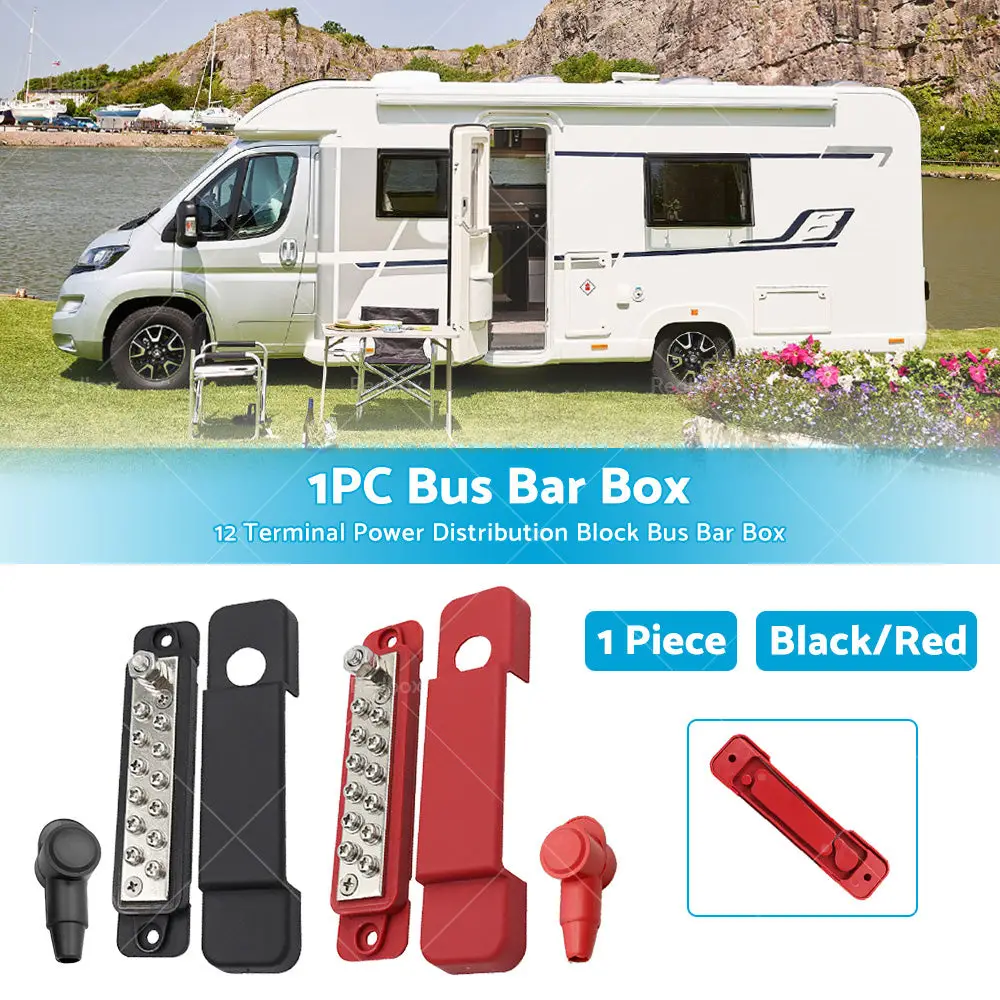

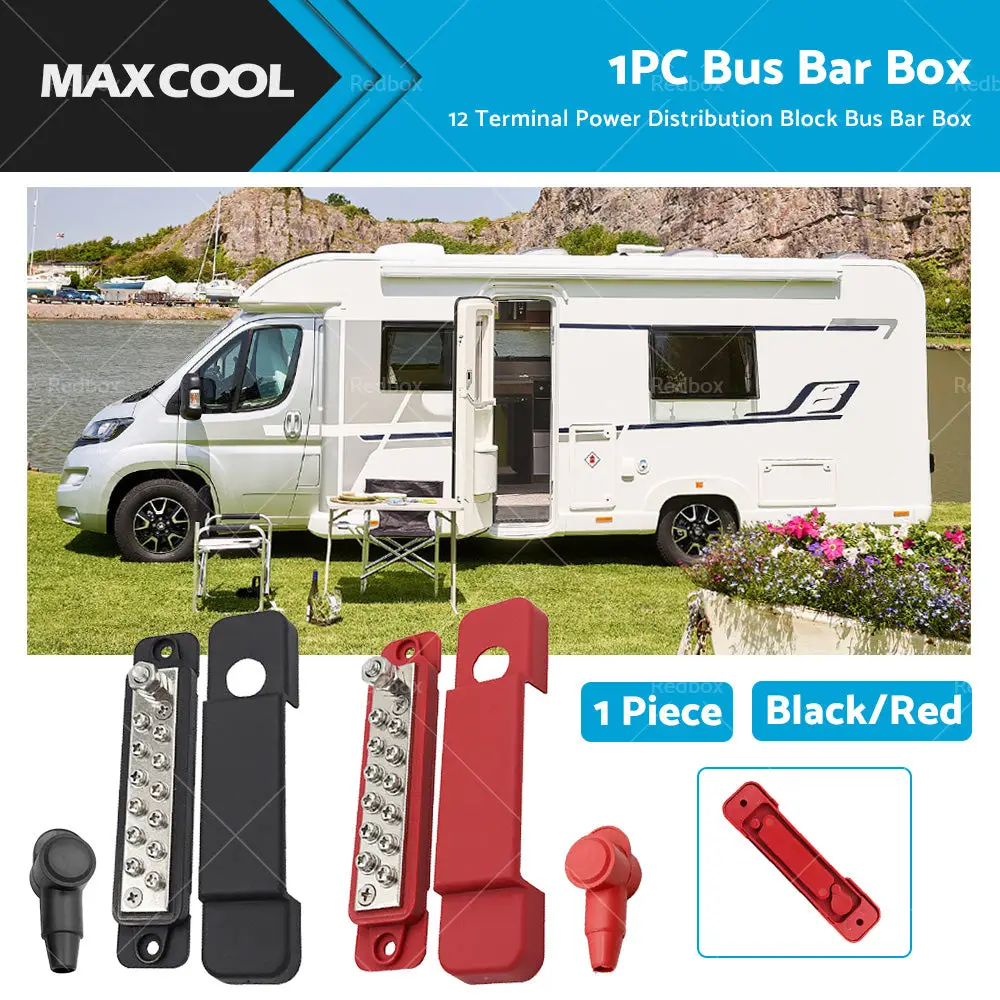

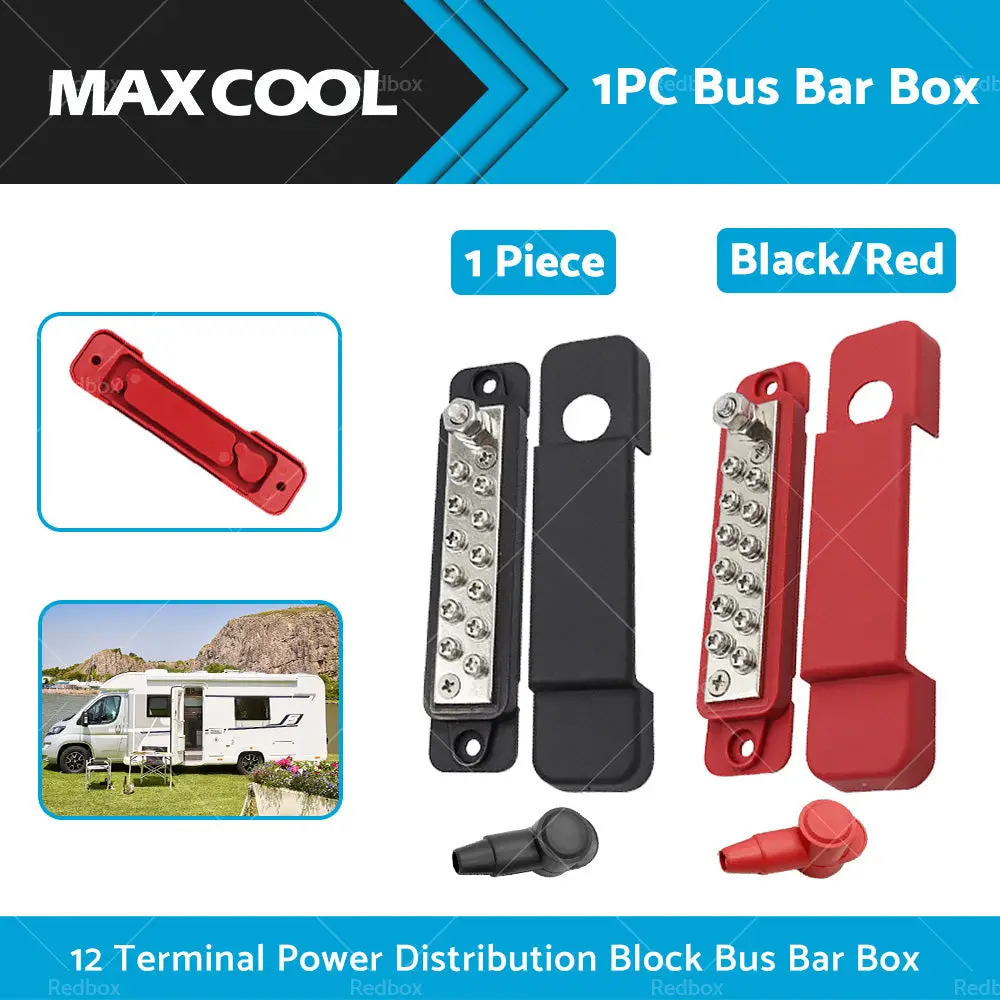

1 Piece 12 Way Bus Bar Power Distribution Rated Terminal Block For Auto Marine

Features

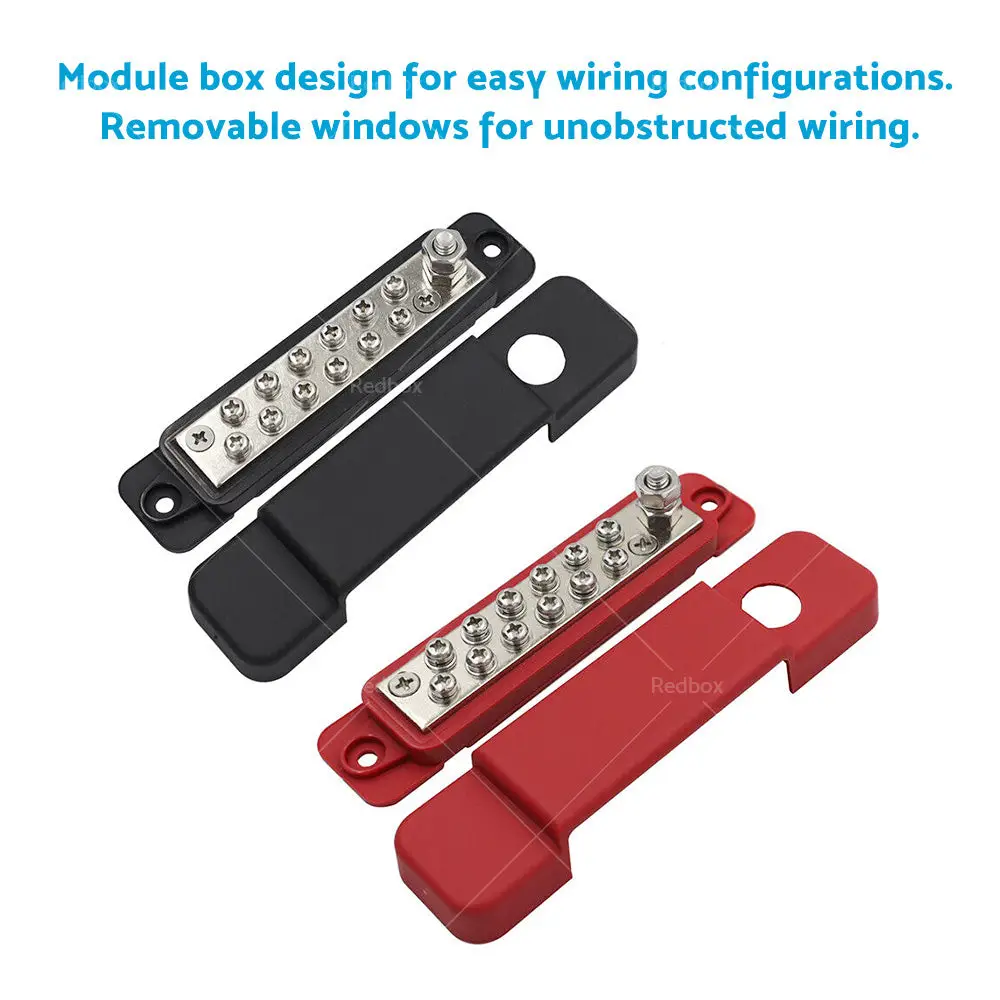

Module box design for easy wiring configurations. Removable windows for unobstructed wiring.

Widely applied to 12-48V car, trucks, RV, marine, boat power systems.

The bus bar box is made of nylon, strong and safe, durable to use.

Easy to mount, screws fixation, firm and stable

Specifications

Brand: MAXCOOL

Type: Bus Bar Box

Color: Red/Black

Warranty: 1 year

Stud Diameter: 1/4″

Maximum voltage: 48V DC

Rated current of each terminal: 15A

Rated current of the entire electric block: 180A

Overall Height: 1.09″(without rubber cover)

Screw Size x 12: #8

Mounting Hole Size: #12 screw

Mounting Center: 4.66″

Material: ABS, zinc alloy, brass

Quantity: 1 piece

Application

Heavy Duty Bus Bar suitable for 12V, 24V, 36V and 48V systems.

Premium quality heavy duty bus bar for use in Caravan, RV, Motorhome, Boat DC electrical systems.

Package include:

1 x Red/Black Bus Bar Box with Cover

Note:

Due to the different monitor and light effect, the actual color of the
item might be slightly different from the color showed on the pictures.
Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
