100PSI 5V 1 or 8NPT Stainless Steel Oil Fuel Air Pressure Transducer Sender Sensor

Features:

It’s advance pressure sender than traditional mechanical pressure sender

CMC for Load Cell Sensor

CMC for Pressure and Pull Pressure Sensor

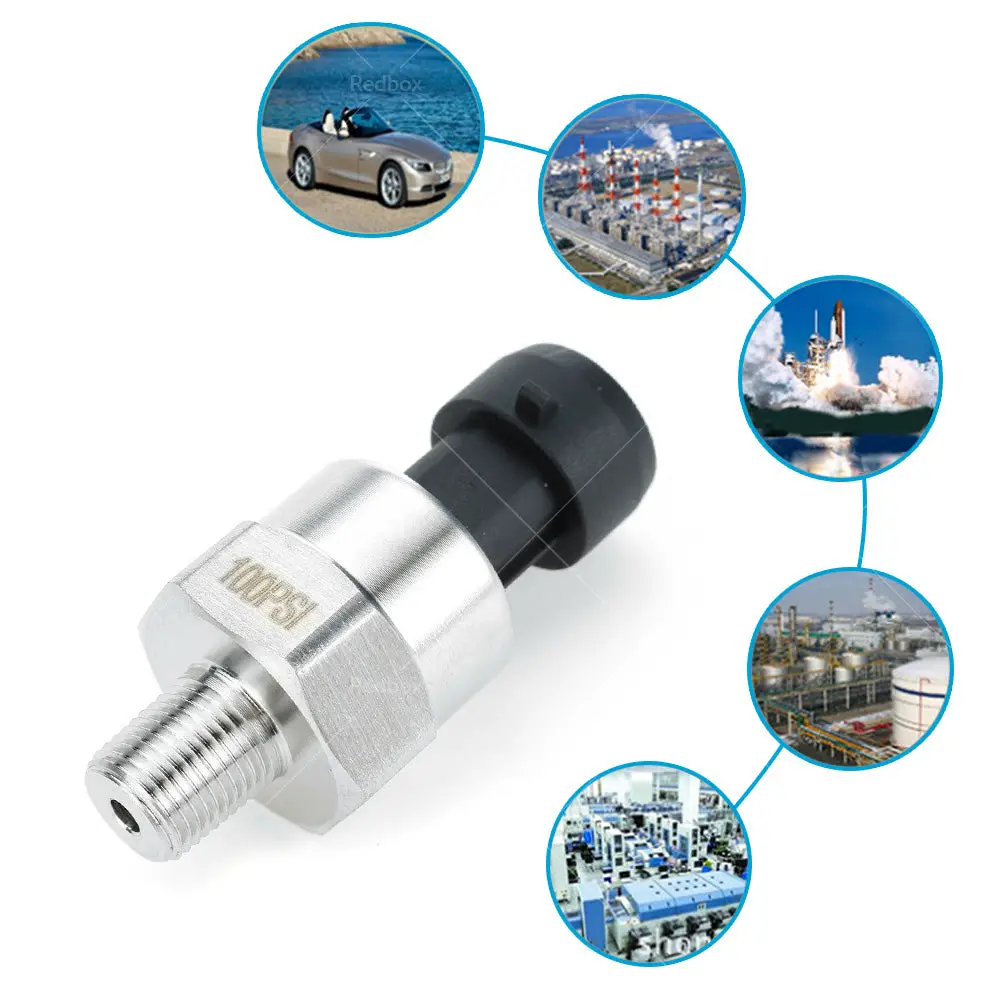

Application:

Cars

Trucks

Industrial process control of engineering vehicle

Aeronautics ,and Astronautics

Medical equipment compressor

Specifications

Brand: MAXCOOL

Type: Pressure Transducer Sender Sensor

Voltage: DC 5V

Material: Stainless Steel & Rubber

Color: Silver & Black

Warranty: 1 year

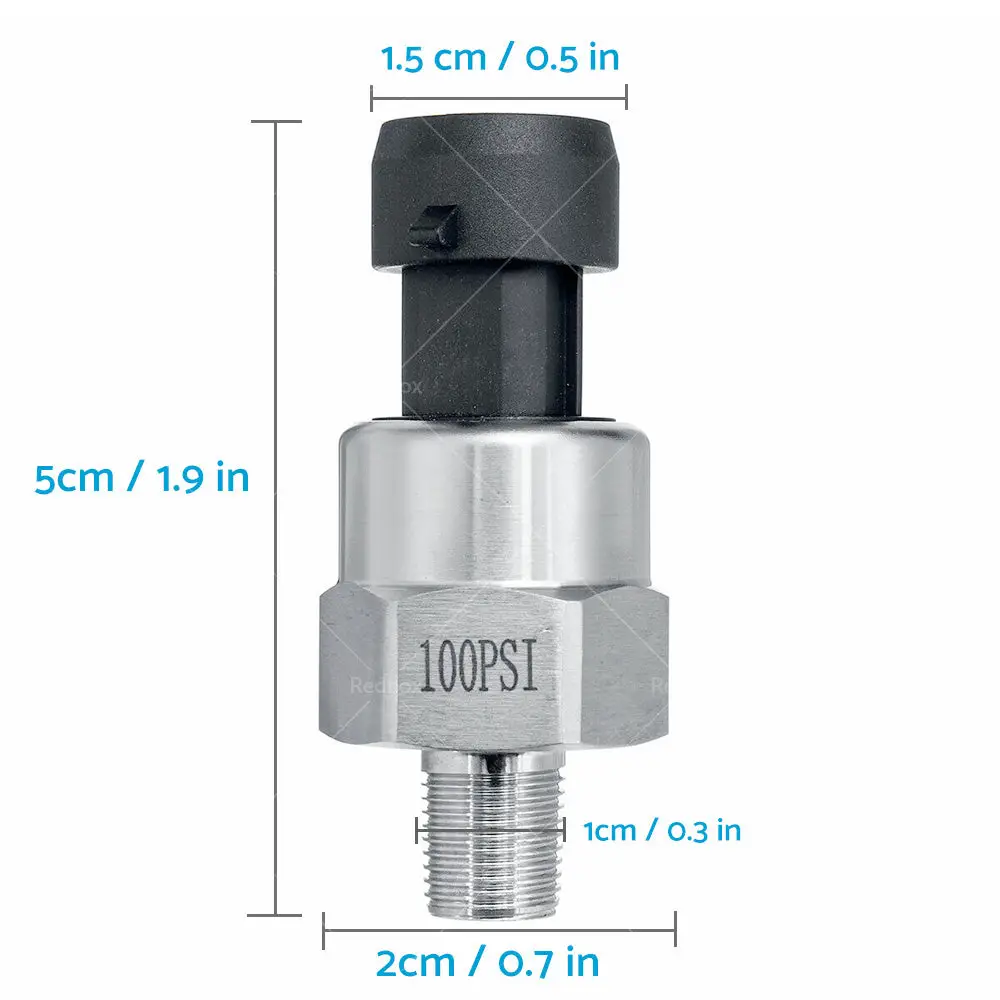

Sender Length: 50mm / 1.96″

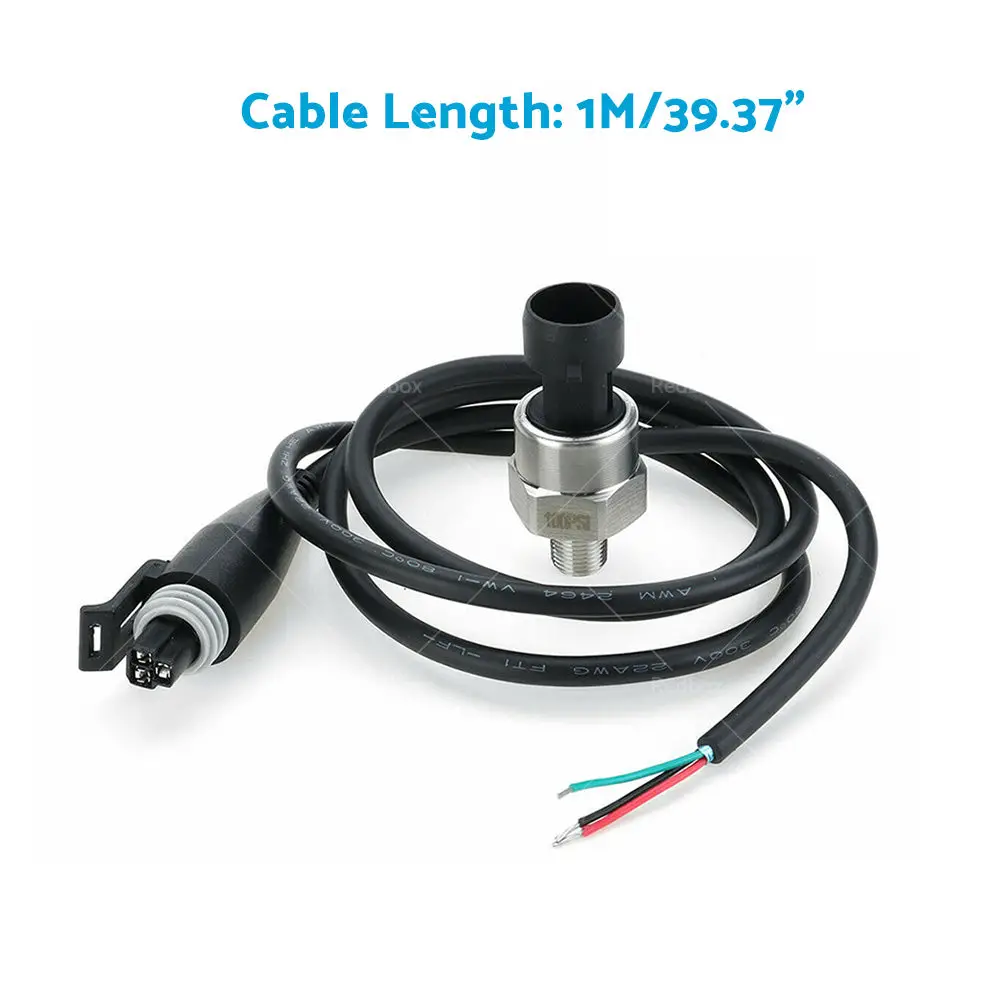

Cable Length: 1M/39.37″

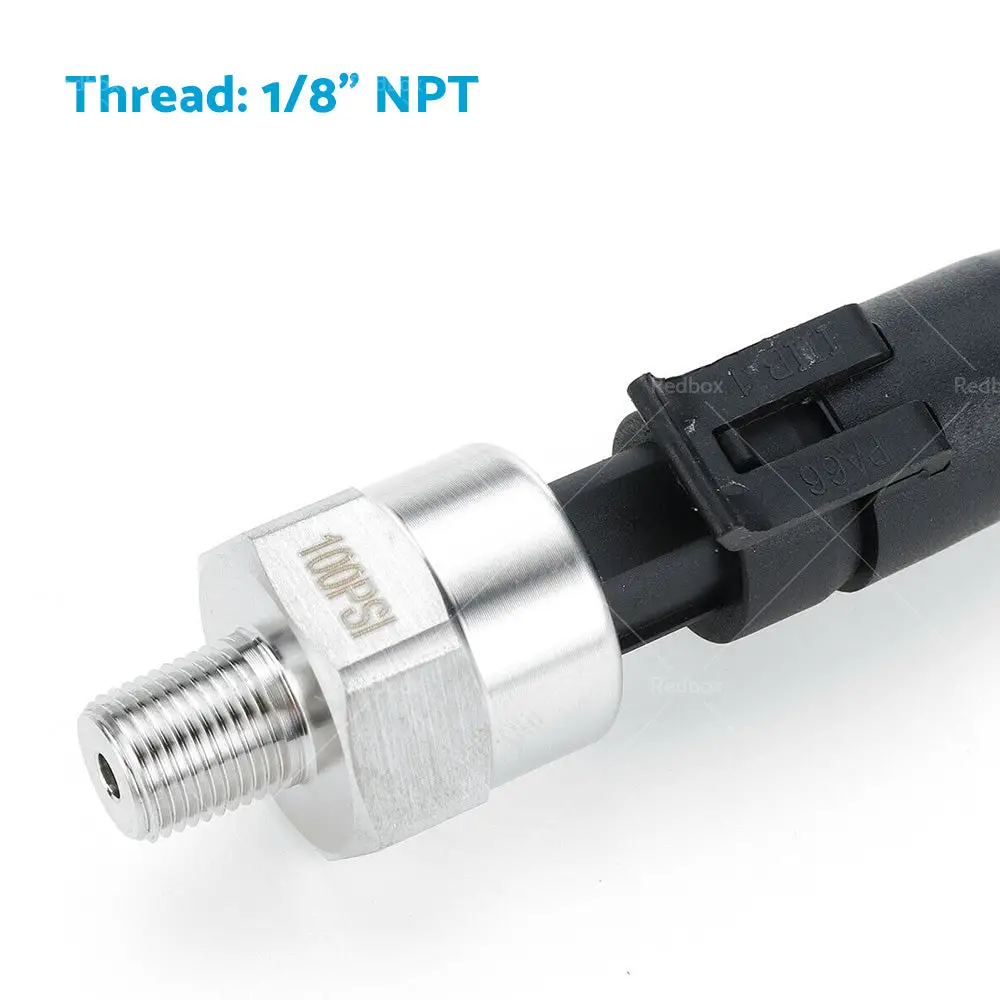

Thread: 1/8″ NPT

Pressure: 100 Psi

Measurement accuracy: ±1.0%FS(0～80℃) ±1.5%FS(-20～100℃)

Working Current: ≤ 10 mA

Response Time: ≤ 2.0 ms

The Biggest Pressure: Double the working pressure

Destroy Pressure:Triple the working

Working TEMP.Range:0-85 Celsius Degree

Storage Temperature Range: 0-300 Celsius Degree

Measuring Error: ±1.5％FSO

Temperature Range Error: ± 3.5％FSO

Package include:

1 x Pressure Transducer Sender Sensor
