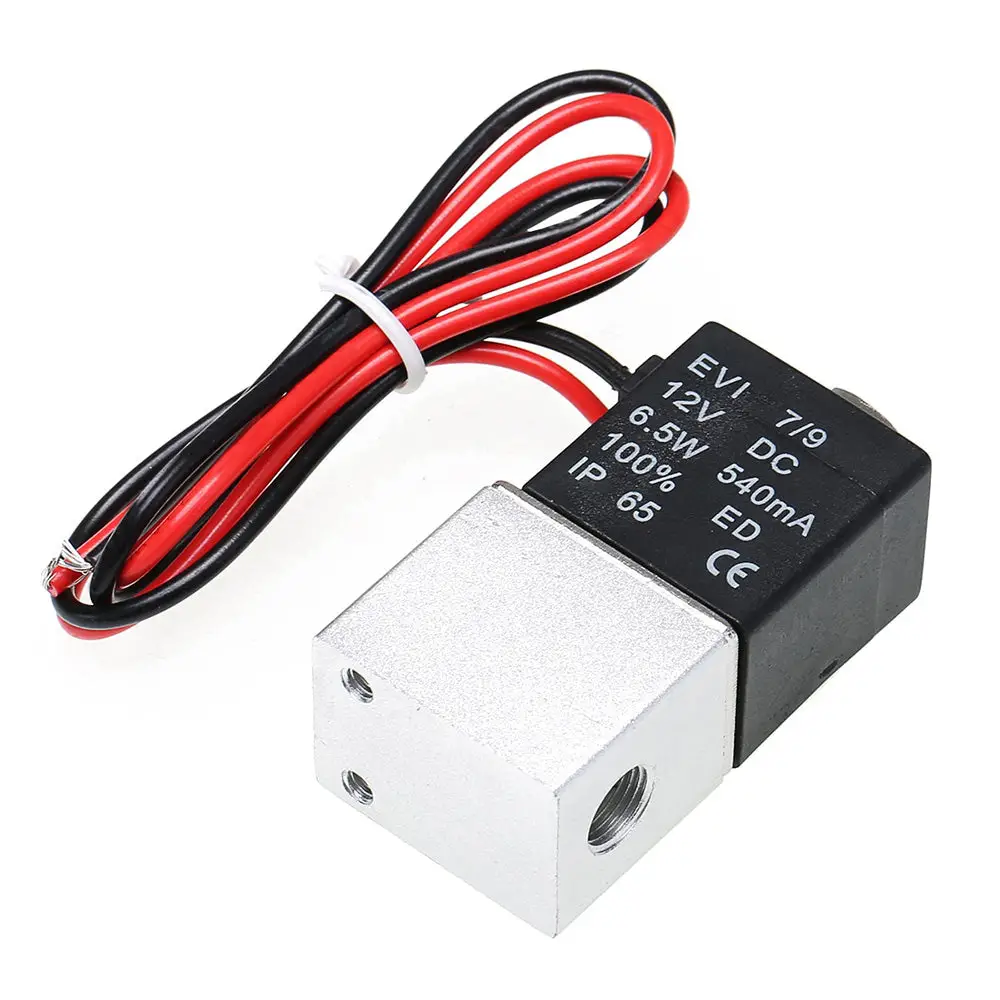

12V 2-Way DC Electric Solenoid Air Valve Normally Closed Suitable For 1 or 4-Inch Systems

Description

Features:
Perfect Match
100% Brand New and High Quality
Direct Replacement, Easy Installation

Specification:
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Coil Voltage: DC 12V
Coil Power: 4W
Port Size: 1/4″ G Female Port
Service Media: Air, Gas, Liquid, Water
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow)
Response Time: Less than 50 ms
Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
Operating Temperature: -10 to 80 °C
Body Material: Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel

Package Included:
1 x Solenoid Air Valve

Note:
Please make sure it will fit your machine before purchasing it.
Please check pictures for more details.
