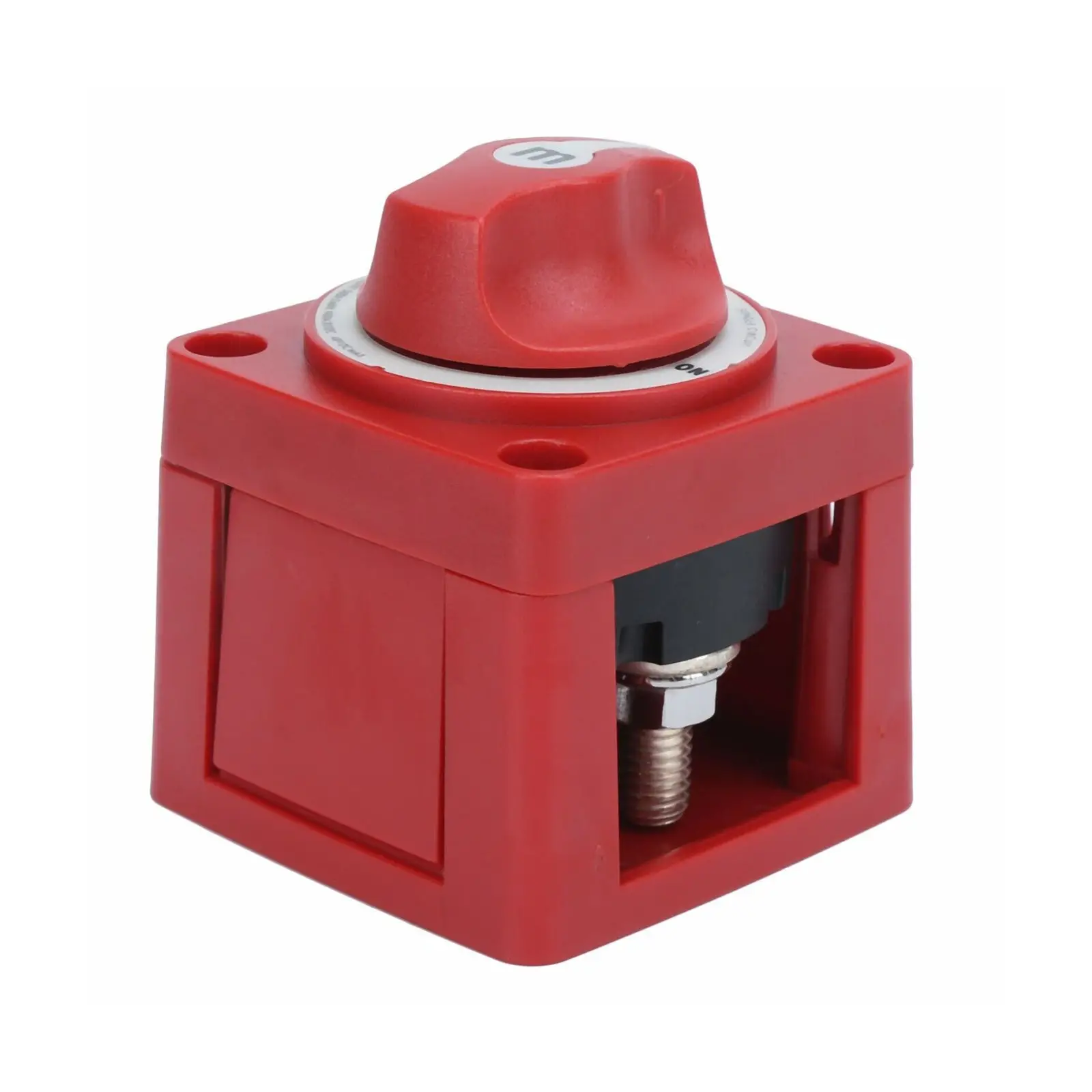

Boat Battery Circuit Master Switch Suitable For Blue Sea 6006 M-Series On/Off

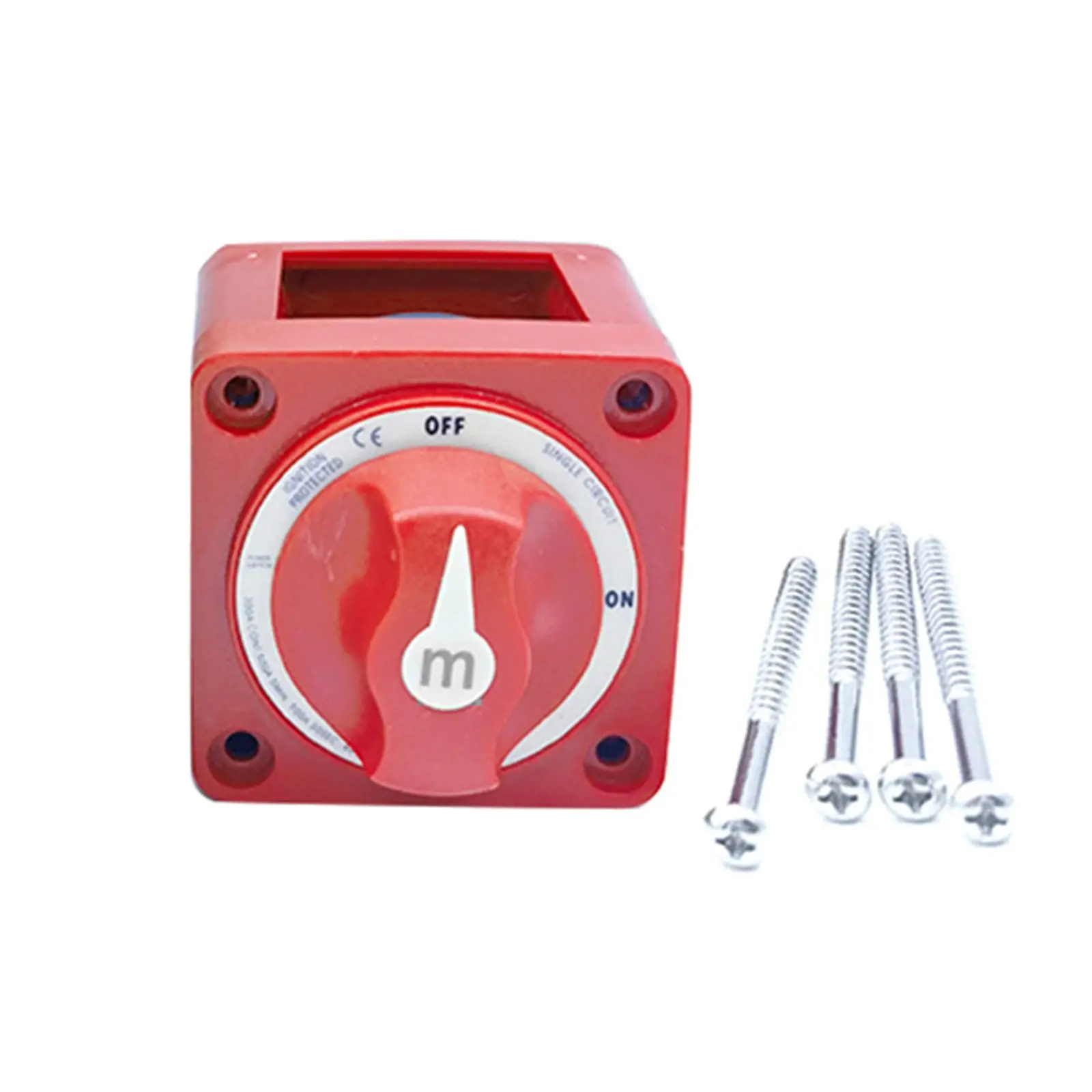

Boat Battery Circuit Master Switch Suitable For Blue Sea 6006 M-Series On/Off - Image 2

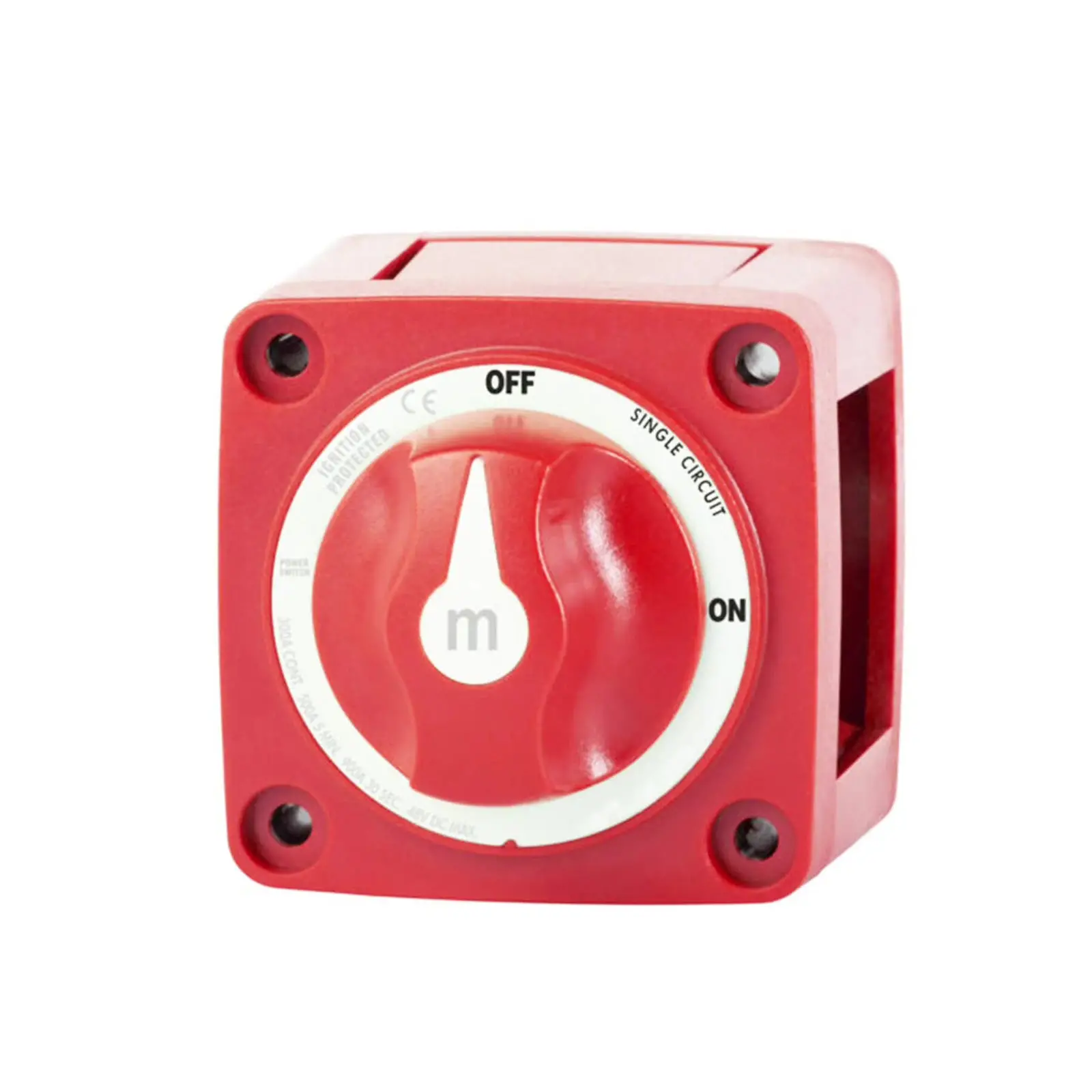

Boat Battery Circuit Master Switch Suitable For Blue Sea 6006 M-Series On/Off - Image 3

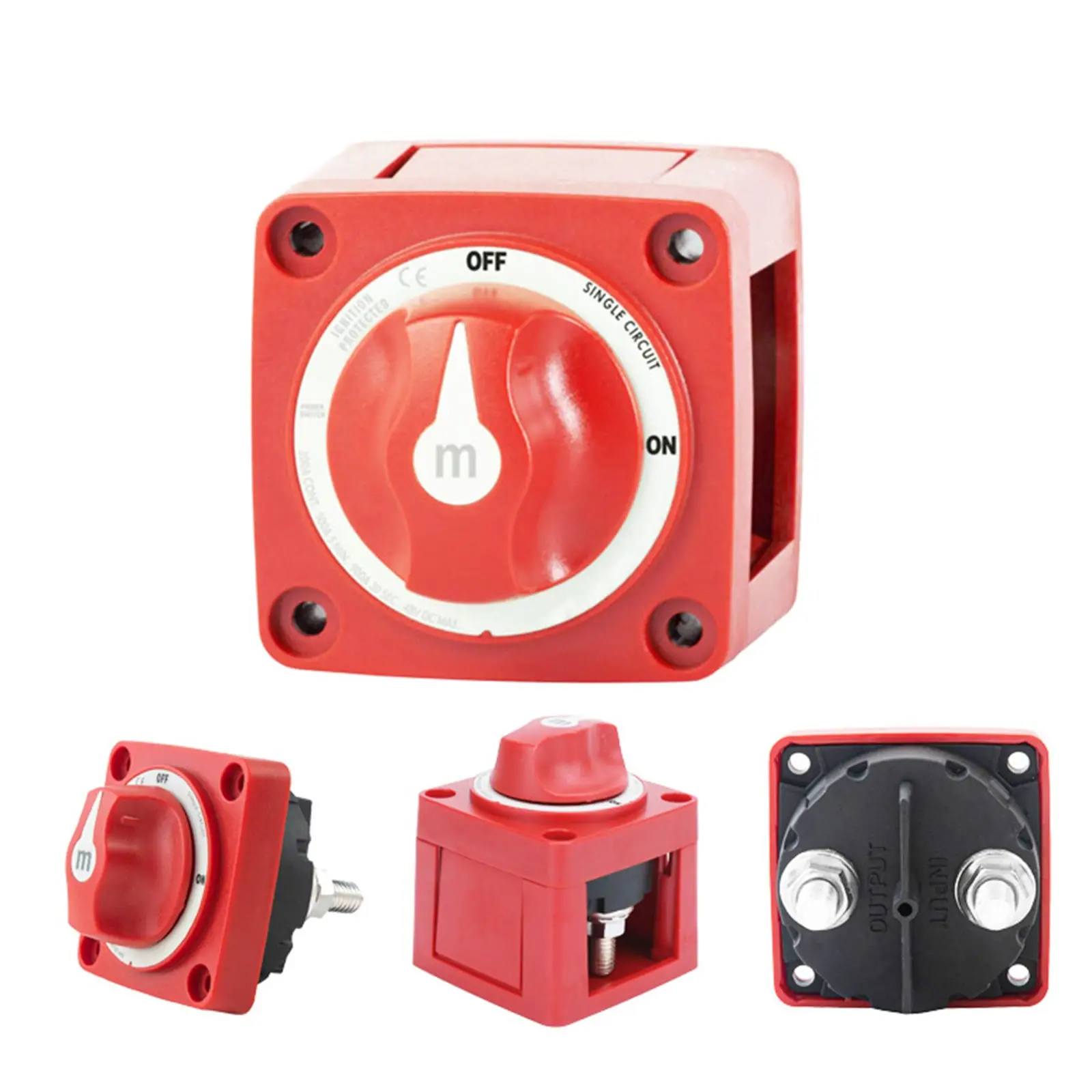

Boat Battery Circuit Master Switch Suitable For Blue Sea 6006 M-Series On/Off - Image 4

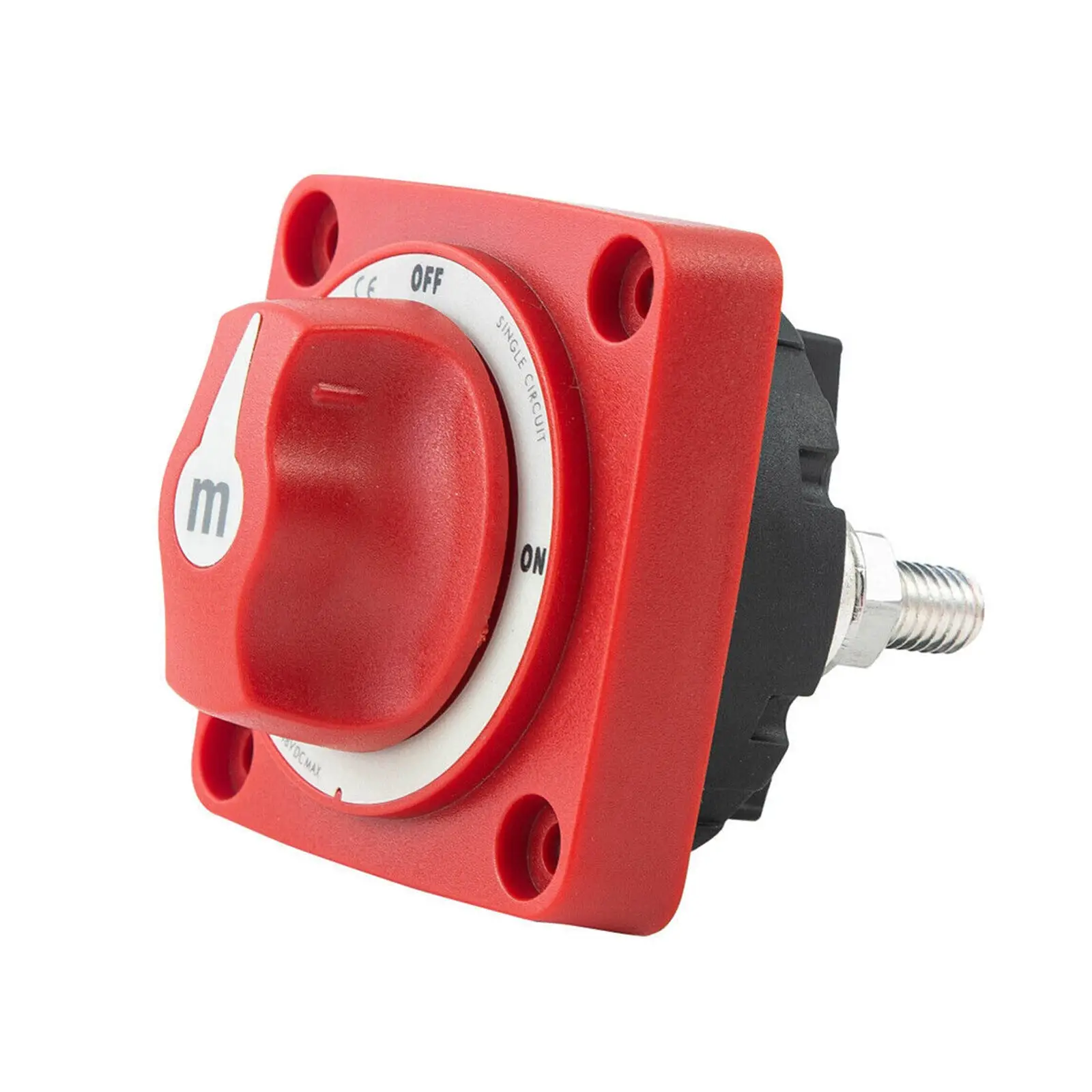

Boat Battery Circuit Master Switch Suitable For Blue Sea 6006 M-Series On/Off - Image 5
Boat Battery Circuit Master Switch Suitable For Blue Sea 6006 M-Series On/Off - Image 6

Boat Battery Circuit Master Switch Suitable For Blue Sea 6006 M-Series On/Off

Be the first to leave a review.

Original price was: $39.59.Current price is: $35.35.

11% Off

98 in stock

98 in stock

Products On Sale protects your payment information
  • Payments are processed securely by PCI DSS compliant payment providers. We do not store your card details.
  • Fast dispatch from Australia. Local support.
  • Card information is secure and uncompromised.
  • Products On Sale never sells your card information.
🇦🇺 100% Australian Based
Categories: ,

Description

Compatible with:
Suitable for Blue Sea 6006 M-Series

Specifications:
Type: Boat Circuit Master Switch
Operation Mode: ON-OFF
Switch position: 2
Battery combination: No
Alternator disconnected on-site: No
Maximum voltage: 48V DC
Terminal torque: 120 inch pounds (13.56 Nm)
Continuous rating: 300A
Intermittent rating: 500A (5 minutes)
Starting rating 10 seconds: 1500A
Starting rating for 1 minute: 775A
Battery input: 1
Cable gap for 4/0 AWG cable: 1.12 inches (28.45 mm)
Compliant cable size: 4/0 AWG (120mm²)
Mounting hole: accept #10 screw
Terminal size: 3/8″-16 (M10)
International Protection Rating: IP66

Package include:
1x Boat Circuit Master Switch

Note:
This switch does not support battery combination or alternator disconnection on-site.

Additional information

Brand

MAXCOOL
