Top End Rebuild Kit Suitable For Honda CRF250R 2004-2009 & CRF250X 2004-2017

Description

Compatible with:
Suitable for Honda CRF250R 2004-2009
Suitable for Honda CRF250X 2004-2017

Feature:
Premium Materials: Ensures durability and reliable performance.
Boosts Efficiency: Restores engine power and smooth operation.
Perfect Fit: Designed for specific engine models for easy installation.
Cost-Effective: Saves money on repairs, extending engine life.

Specification:
Type: Top End Rebuild Kit
Warranty: 1 year
Displacement: 249cc
Engine type: 4-Stroke
Bore Type: Standard Bore
Bore diameter: 78.00mm
Stroke: 52.2 mm
Pin diameter: 16mm
Pin Length: 40mm
Reference Numbers:
Cylinder Base Gasket: Suitable for 12191-KRN-731
Cylinder Head Gasket: Suitable for 12251-KRN-671, 12251-KRN-731
Piston (Std): Suitable for 13101-KRN-670, 13101-KRN-850
Pin, Piston: Suitable for 13111-KRN-850
Piston Ring Set (Std): Suitable for 13011-KRN-A10, 13011-KRN-850
Circlips, piston (2): Suitable for 13115-KM7-700
Exhaust Gasket: Suitable for 18291-KPS-900
Chain Tensioner Gasket: Suitable for 14560-MEN-671

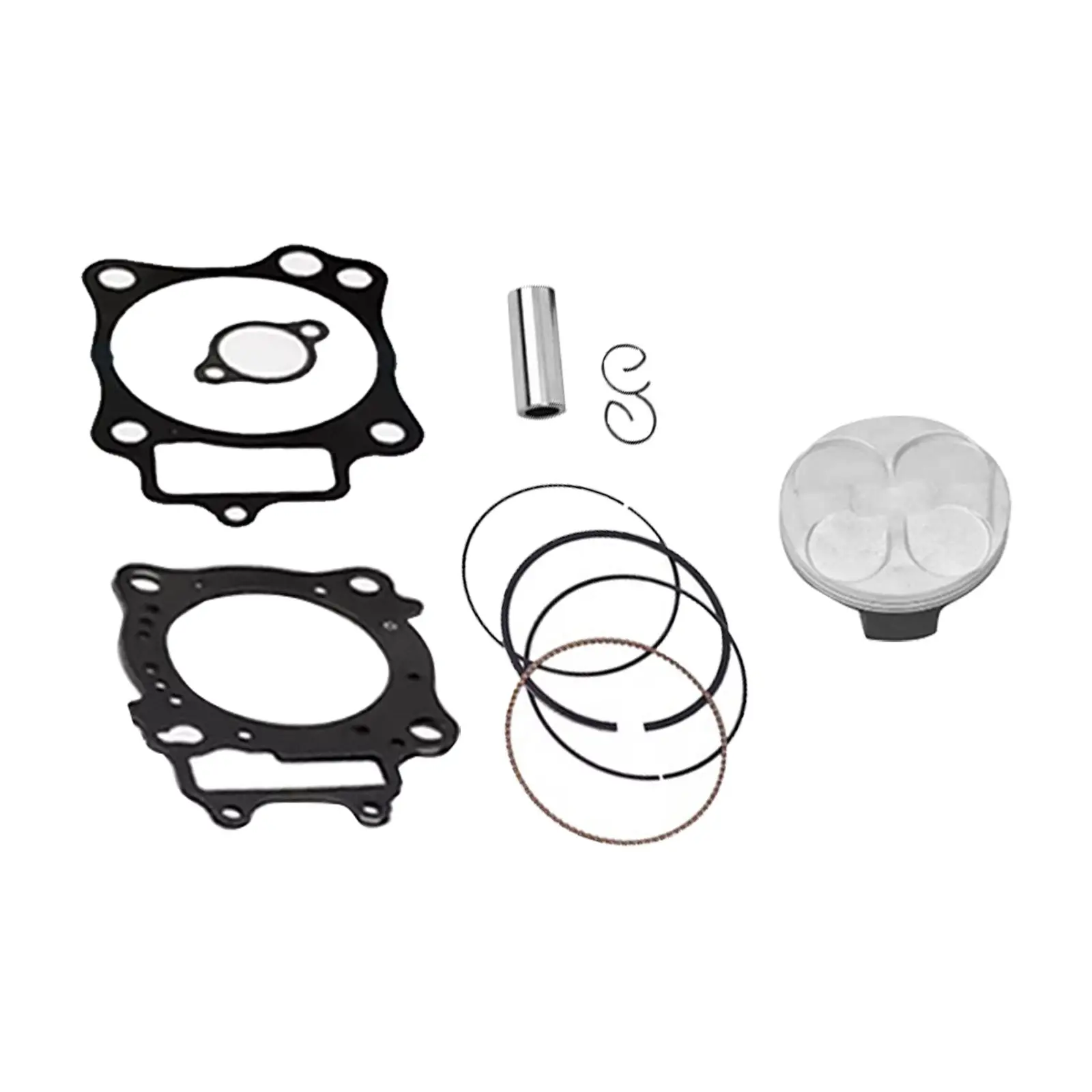

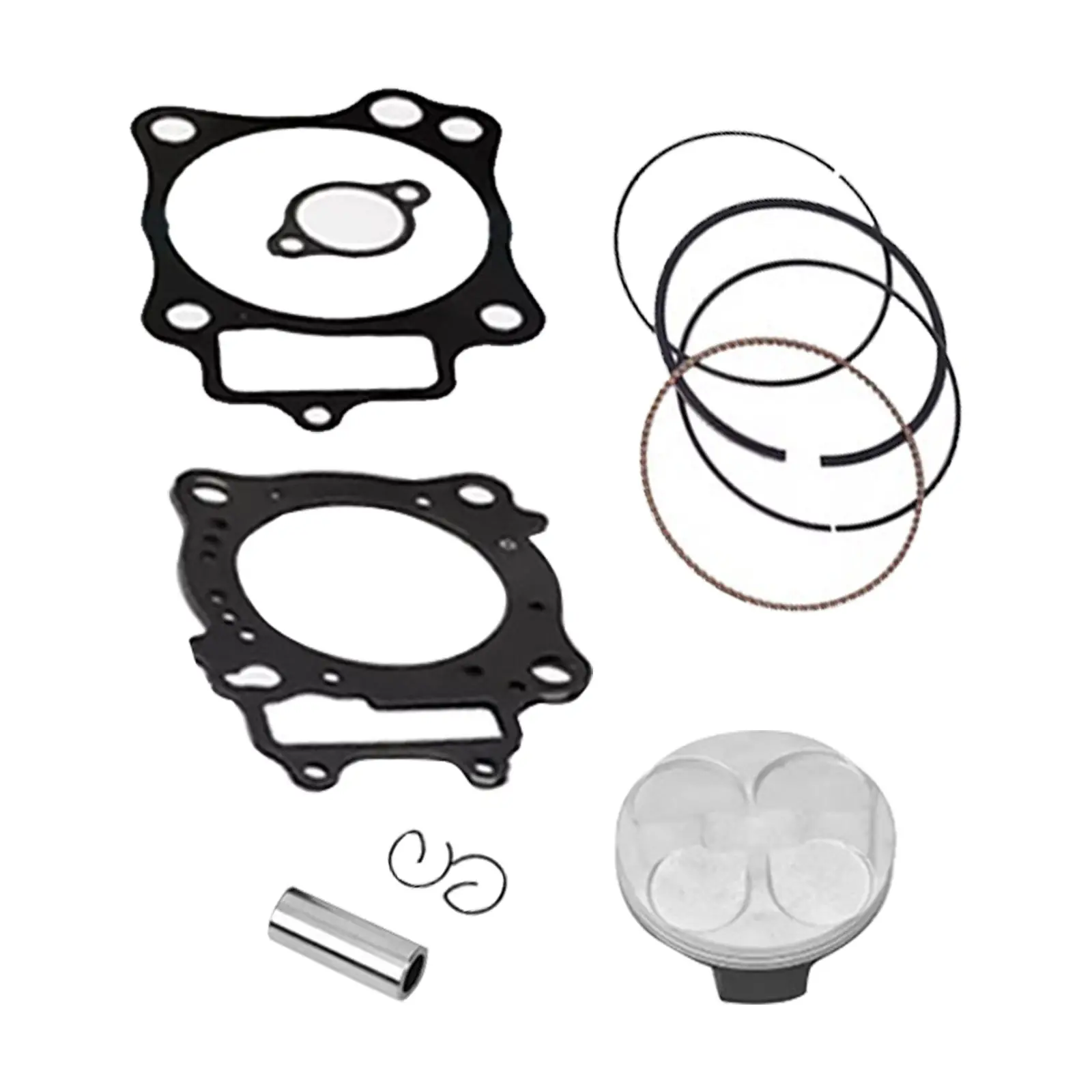

Package Include:
1x Piston

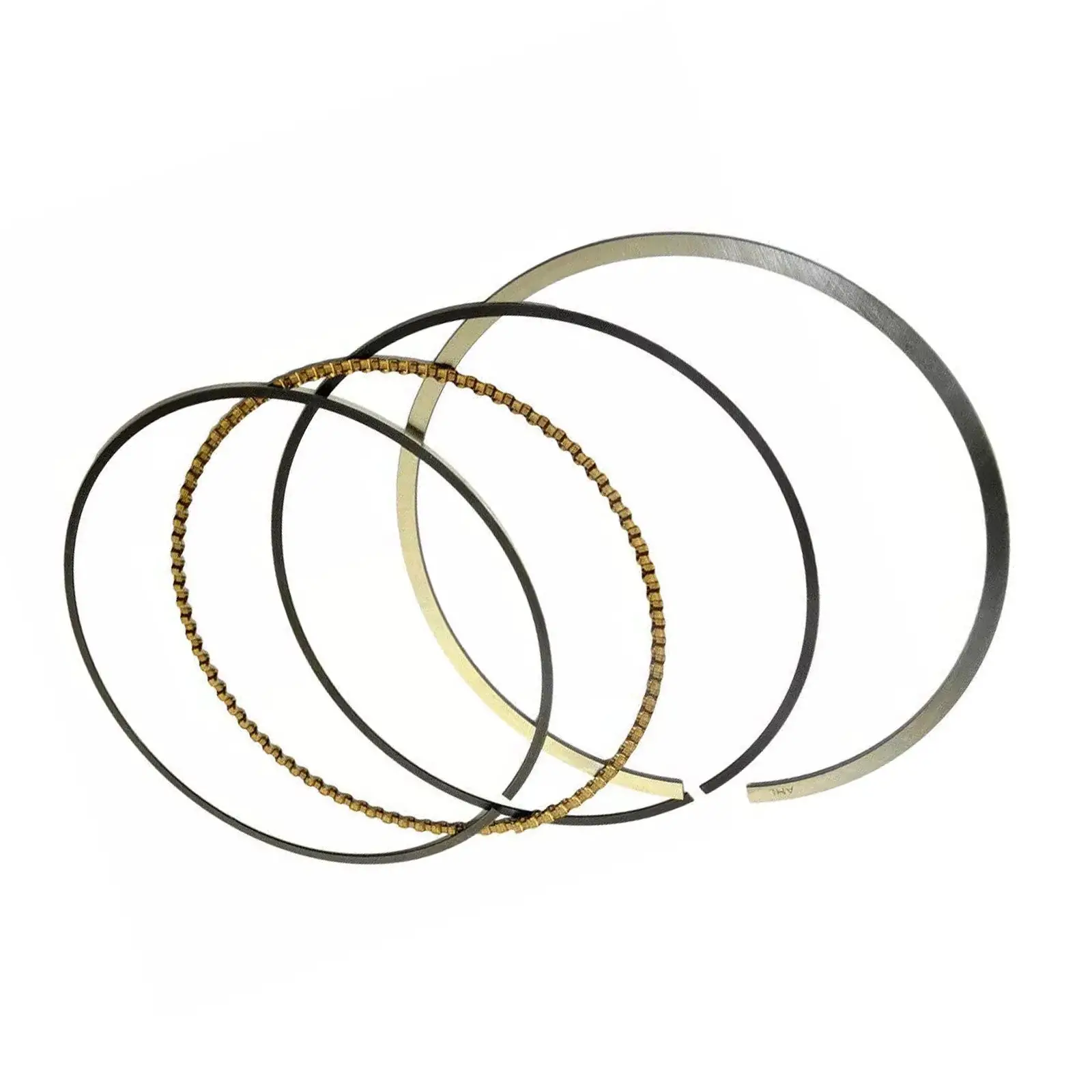

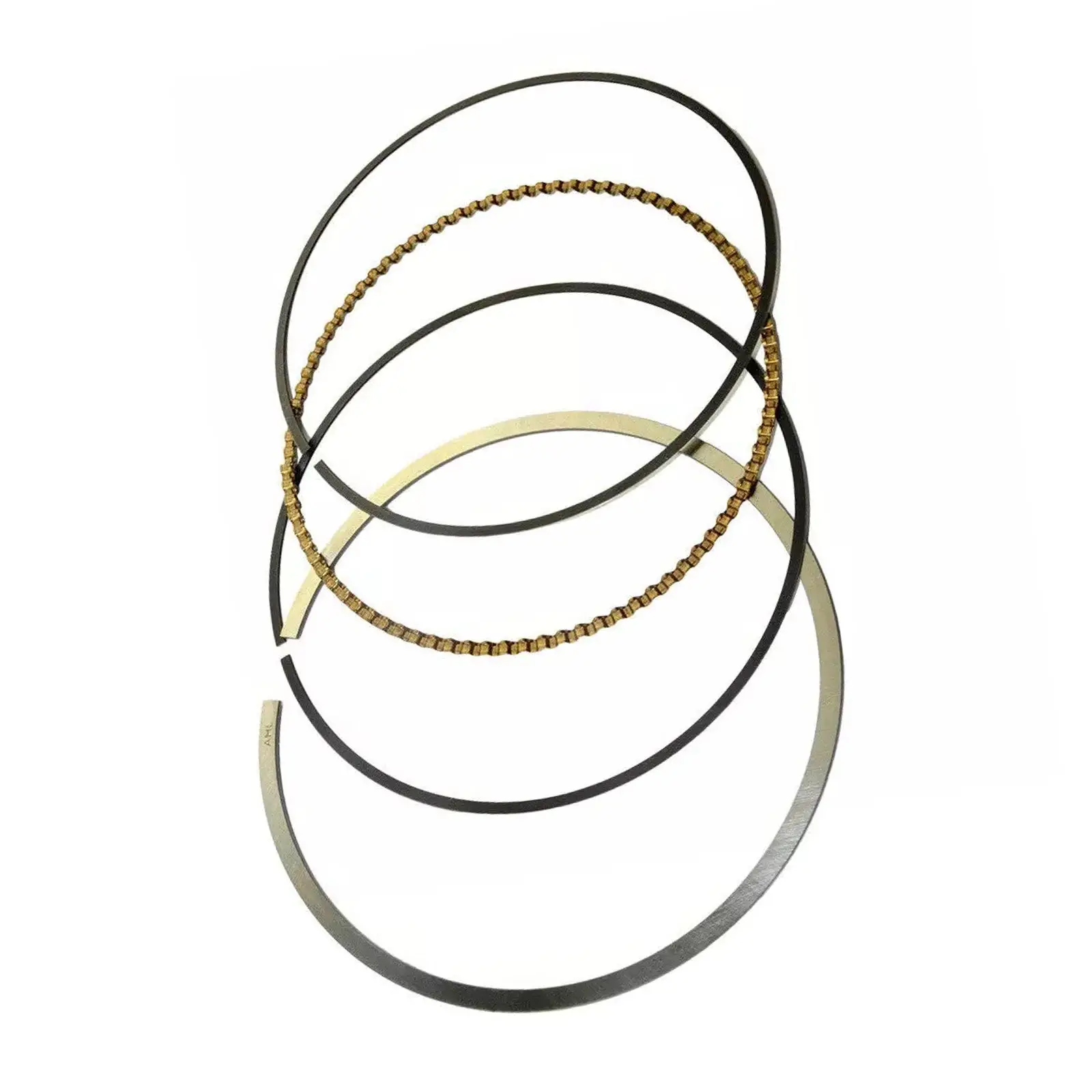

1x Piston Ring Set
1x 16mm Wristpin
1x Circlip (2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Exhaust Gasket
1x Chain Tensioner Gasket
