Wideband Air Fuel Ratio (AFR) Gauge Kit 52mm Suitable For Universal 30-4110

Description

Specifications:
Type: Wideband Air/Fuel Gauge Kit
Fitment Type: Direct Replacement
Placement on Vehicle: Front
Display Type: Analog & Digital
Warranty: 1 Year
Reference OE/OEM Number: Suitable for 30-4110
Color: Black
Quantity: 1 Kit
Size: 52mm (2 1/16″)
Gauge Display/0-5V Output Gasoline values: 10:1 to 20:1 AFR
0-5V Output E85 values: 6.6 to 13.2:1 AFR
0-5V Output Ethanol values: 6.14 to 12.3:1 AFR
0-5V Output Methanol values: 4.4 to 8.8: AFR
Gauge Display/0-5V Output Lambda values: 0.68 to 1.36
Interchangeable black and white faceplates included for customizing gauge appearance (digital gauges only)
No free air sensor calibration required – ever
Interchangeable black and silver bezels included
52mm (2-1/16″) gauge housing
0-5V analog output (10-20 AFR range only)

Features:
Analog & digital display for easy reading and accurate measurements
Adjustable faceplates and bezels for customization of the gauge appearance
No need for free air sensor calibration, making installation easier
Wide range of AFR (Air/Fuel Ratio) outputs for different fuels (Gasoline, E85, Ethanol, Methanol)
Designed to fit universally in any vehicle with a 52mm gauge mount

Compatible With:
Suitable for Universal vehicles

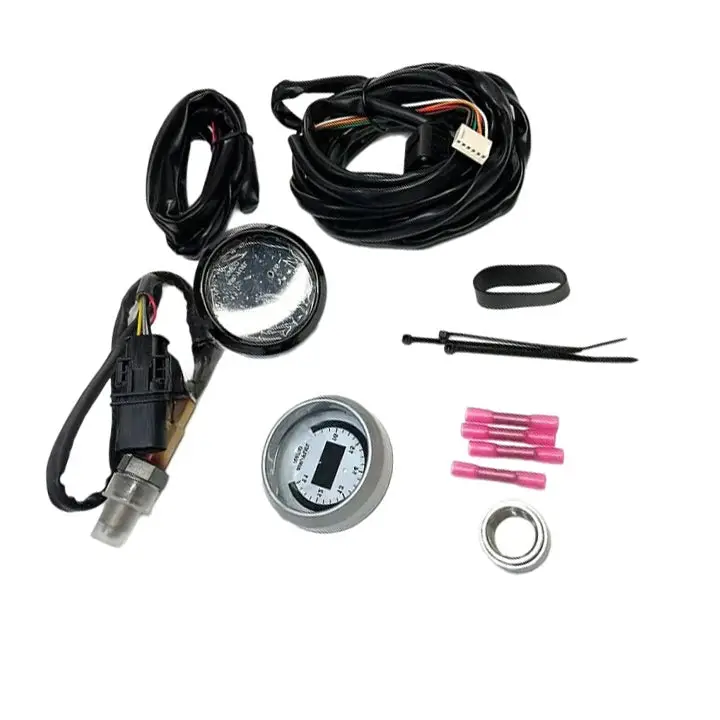

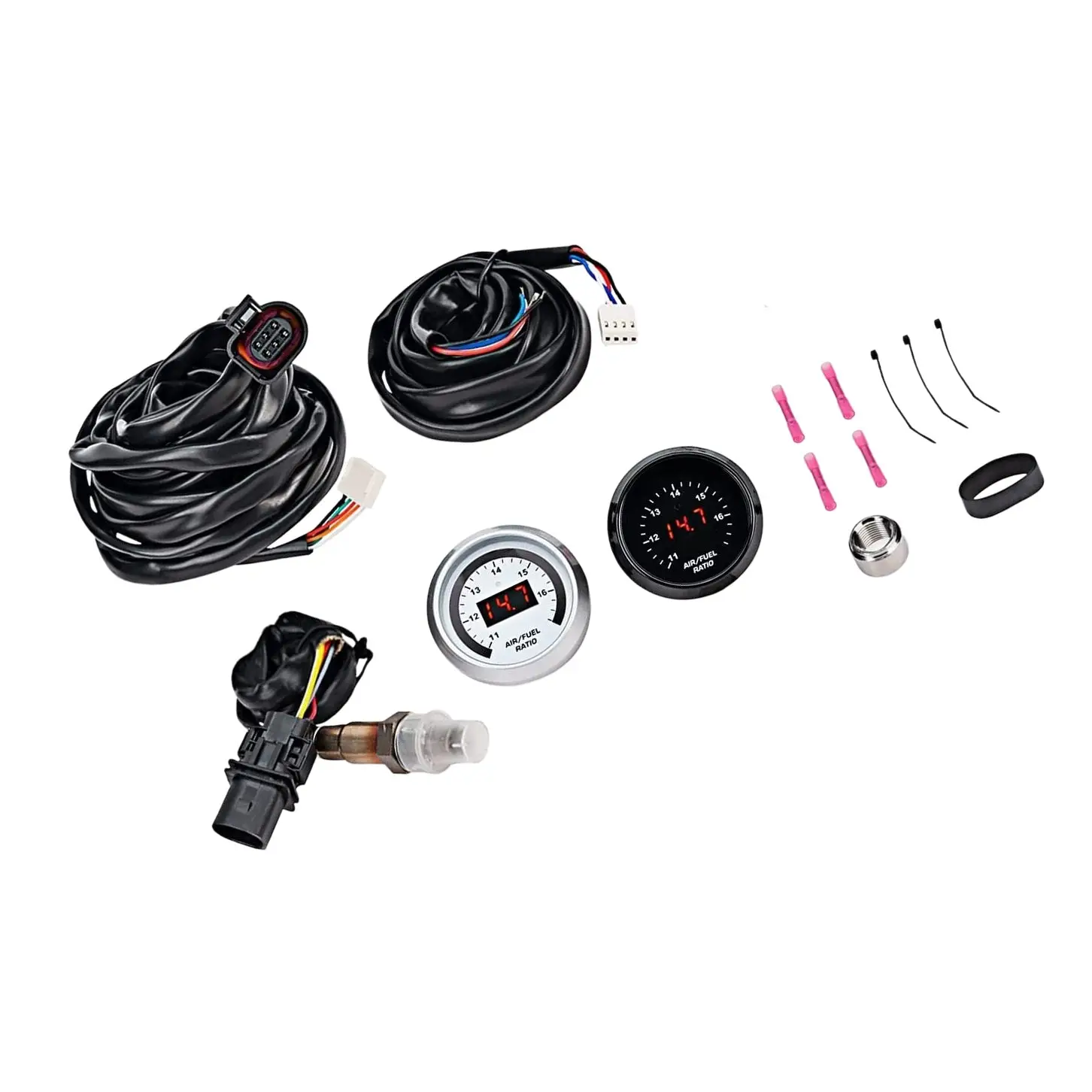

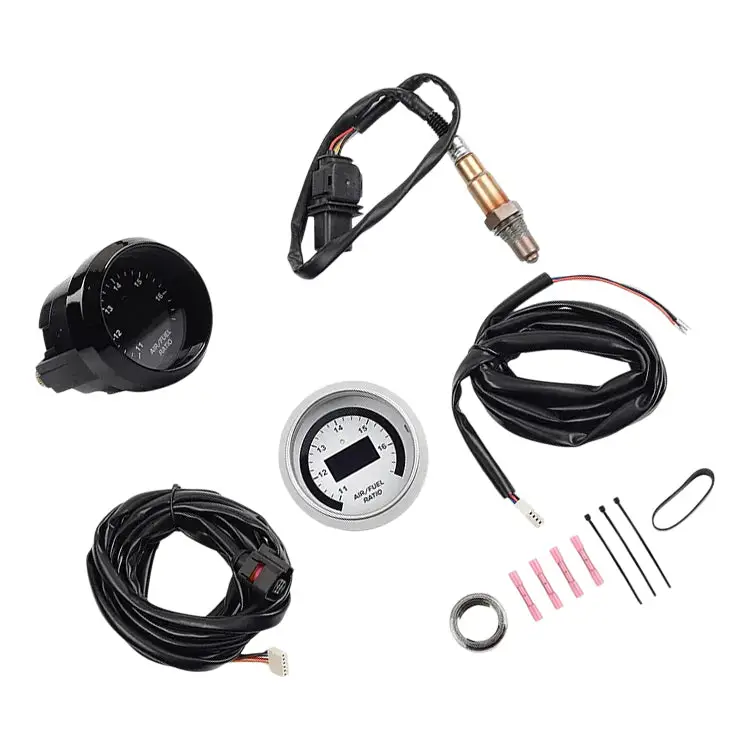

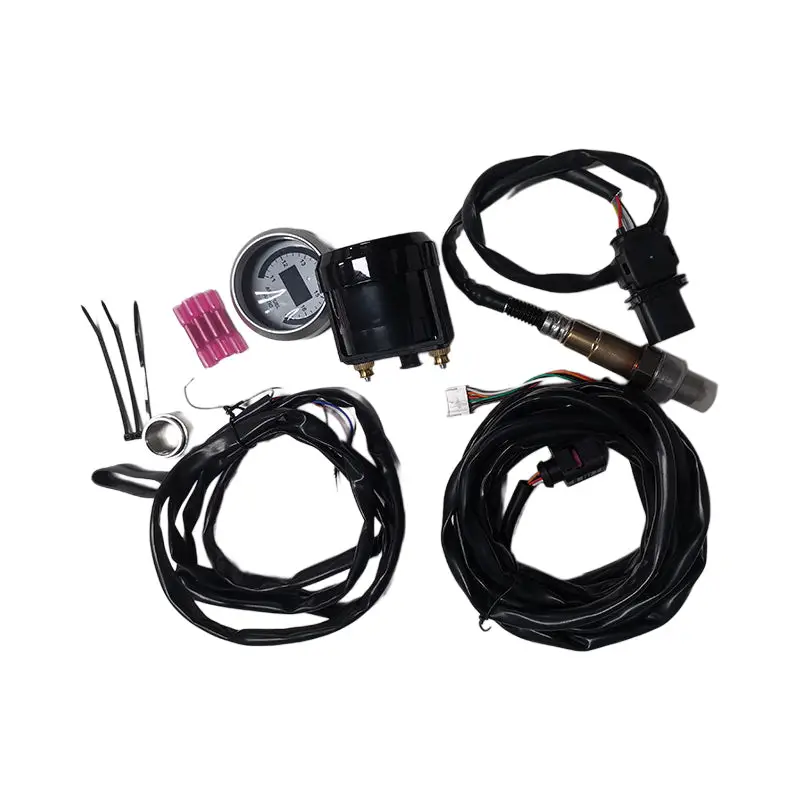

Package Includes:
1 x Gauge Assembly
1 x Sensor
1 x Sensor Bung
4 x Butt Connectors
1 x Installation Instruction
1 x 4 Lead Harness
1 x Sensor Harness
1 x Silver Bezel
1 x Black Lambda Faceplate
1 x White AFR Faceplate
